LiFePO4 Battery Pack
LiFePO4 battery pack has advantages of good security, high energy density, long cycle life, and low cost,so that lithium iron phosphate battery (LiFePO4 battery pack) is regarded as the best choices for new age power sources.LARGE POWER manufactures a complete line of 12V 24V 36V 48V 60v 72V LiFePO4 battery pack for use in solar energy storage, robotic, medical, instrument and much more.
This LiFePO4 battery pack series are available in a variety of capacities, to be used as the building block of a larger energy storage system by assembling in series and parallel for any voltage and capacity requirements. Prototype systems can be assembled faster than any time previously, therefore reducing project development time and decreasing non-recurring engineering expense.

Key Features of LiFePO4 Battery Pack
High safety: LiFePO4 Battery cells composed.
Excellent lifespan: 4000+ cycle life.
Compact size and lighter weight.
Temperature tolerant.
BMS overall protections.
RS485 communication function.

About Series & Parallel Connections
Max 48 batteries in series.
Max 126 batteries in parallel.
Mix series and parallel available.
Easy installation, free maintenance, easy to expand.




View as


  • Model: VTC-8LF10
    Nominal capacity: 10Ah
    Internal Resistance: ≤40mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage: 29.4V
    Cut-off Discharge Voltage: 21V
    Battery Weight: 2.5Kg
    Measurement: 225*130*85mm

    Read More Send Inquiry

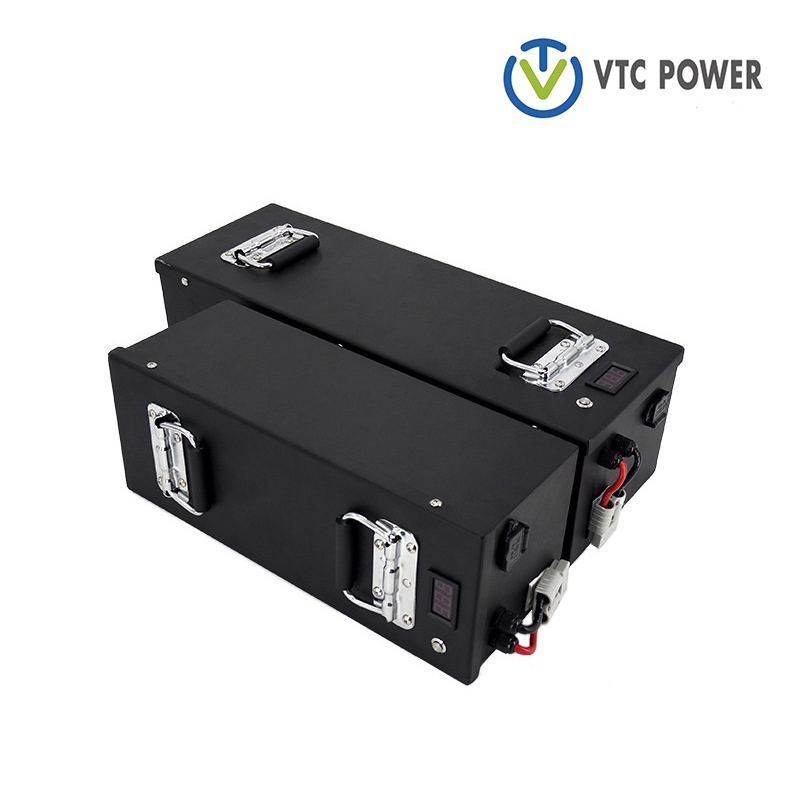

  • Model: VTC-LF64150
    Battery Cell: LiFePO4 Cell 32650
    Nominal voltage: 64V
    Nominal capacity: 150Ah
    Internal Resistance: ≤40mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage:72V
    Cut-off Discharge Voltage: 45V
    Continuous Discharge Current: 100A
    Battery Weight: 80Kg
    Measurement: 740*380*240mm

    Read More Send Inquiry

  • Model: VTC-16LF20
    Nominal voltage: 48V
    Nominal capacity: 20Ah
    Internal Resistance: ≤12mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage:58.4V
    Cut-off Discharge Voltage: 36.9V
    Continuous Discharge Current: 40A
    Battery Weight: 5.5Kg
    Measurement: 300*135*70mm

    Read More Send Inquiry

  • Model: VTC-16LF200
    Nominal voltage: 48V
    Nominal capacity: 200Ah
    Internal Resistance: ≤100mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage:58.4V
    Cut-off Discharge Voltage: 36.9V
    Continuous Discharge Current: 100A
    Battery Weight: 65Kg
    Measurement: 640*483*222mm

    Read More Send Inquiry

  • Model: VTC-16LF100
    Nominal voltage: 48V
    Nominal capacity: 100Ah
    Internal Resistance: ≤80mΩ
    Life Cycles: ≥2000
    Maximum Charge Voltage:58.4V
    Cut-off Discharge Voltage: 36.9V
    Continuous Discharge Current: 100A
    Battery Weight: 64Kg
    Measurement: 177*410*452mm

    Read More Send Inquiry

  • Model: VTC-4LF40
    Nominal capacity: 40Ah
    Life Cycles: ≥2000
    Maximum Charge Voltage: 14.6V
    Cut-off Discharge Voltage: 9.2V
    Battery Weight: 5Kg
    Measurement: 195*132*170mm

    Read More Send Inquiry
 ...2627282930...41
LiFePO4 Battery Pack manufacturers and suppliers in China - VTC Power brands. Welcome to wholesale and buy LiFePO4 Battery Pack with cheap price from our factory. We also provide you newest price list, quotation and free sample. Our LiFePO4 Battery Pack can be customized, If you need, we also supply you with free sample.For more info, welcome to contact us.
