Lithium thionyl chloride battery (Li-SOCI2 battery) cathode is lithium metal (Li), the internal positive electrode active material and electrolyte are thionyl chloride (SOCl2)。 The rated voltage is 3.6V. 3.6V LiSoci2 battery are cylindrical and button shape, from 1/2AA to D format, with spiral type for high current and bobbin construction for small current. Lithium thiony chloride cells have a high energy density, partly because of their high nominal voltage of 3.6V. Bobbin type can reach 760Wh/kg, for a capacity of 19Ah at 3.6V in D format. Because self-discharge is extremely low, 3.6V LiSoci2 battery cell can support long storage periods and achieve a service life of 10 to 20 years.
Model: VTC-ER34615
Nominal voltage: 3.6V
Nominal capacity: 19000MAh
Battery Weight: 115G
Measurement（Φ*H）: 34*61.5mm

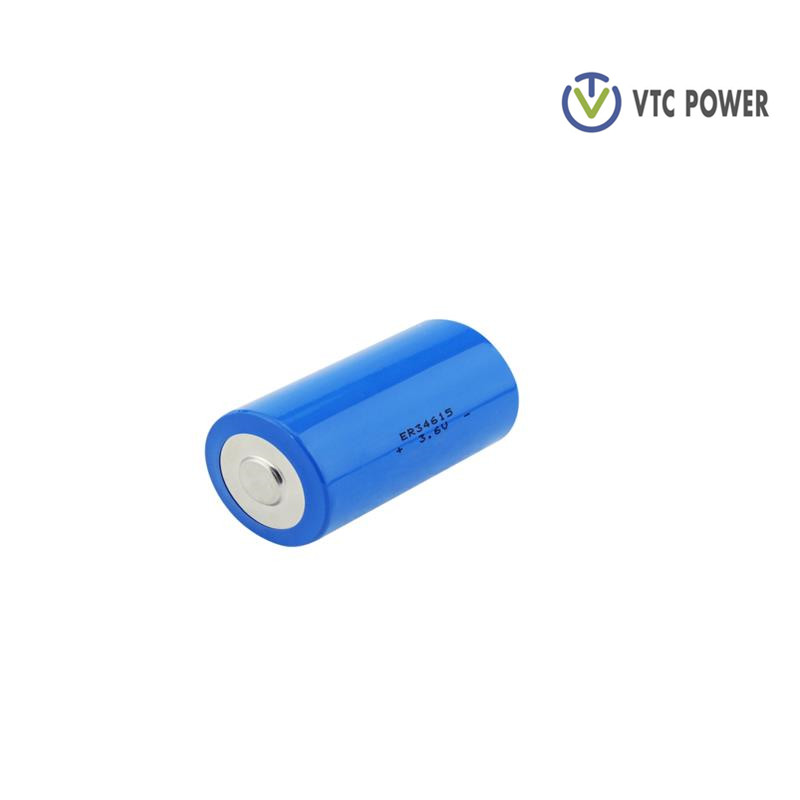

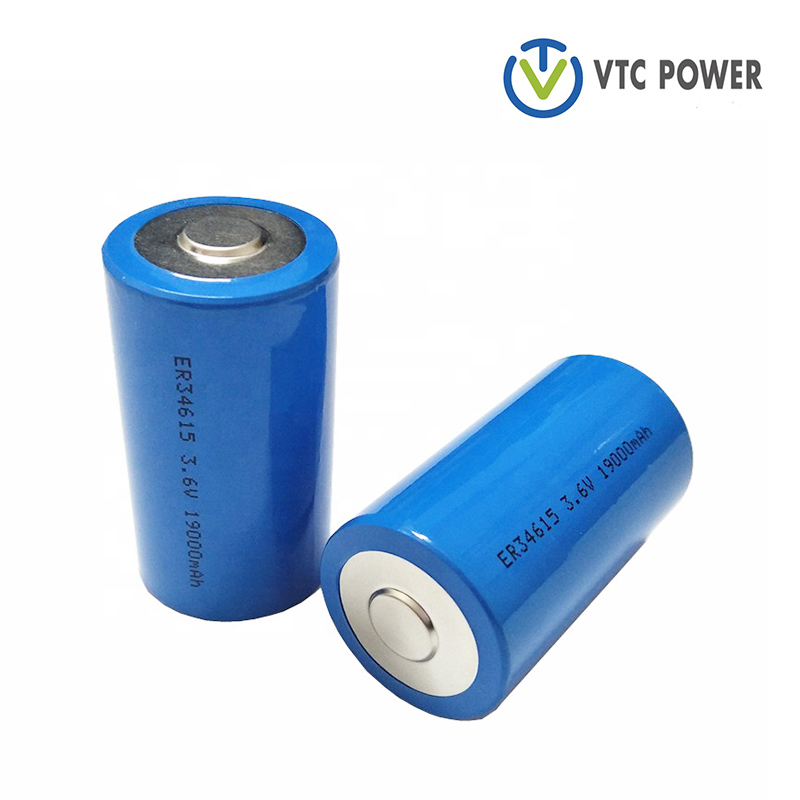

Er34615m Battery Specification:
Model: VTC-ER34615
Nominal voltage: 3.6V
Nominal capacity: 19000MAh
Battery Weight: 115G
Measurement（Φ*H）: 34*61.5mm

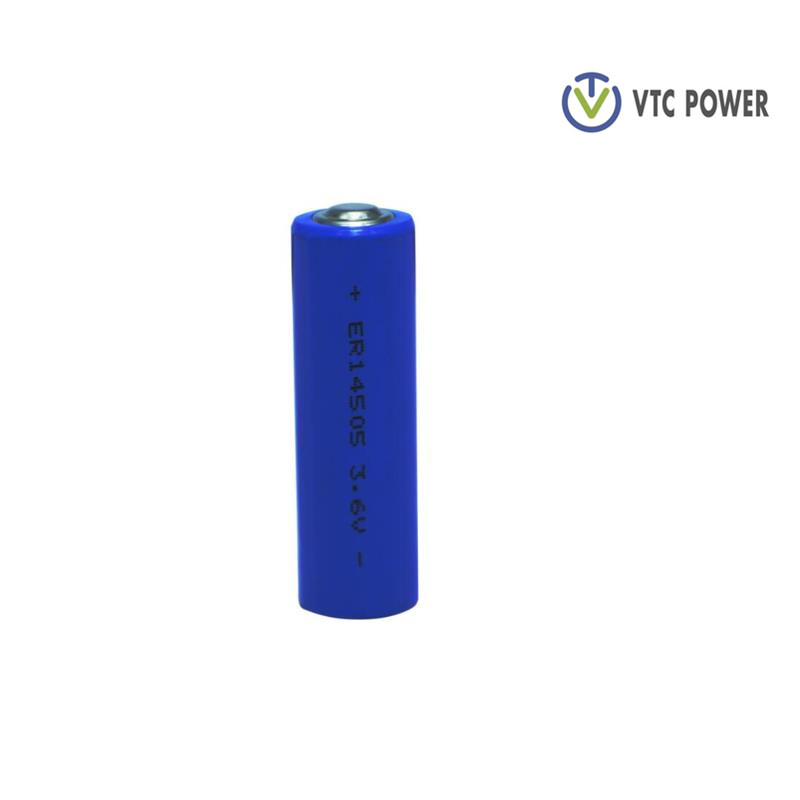

Er14505h 3.6v Lithium Battery Aa Er14505 Specification:
Model: VTC-ER14505
Nominal voltage: 3.6V
Nominal capacity: 2400MAh
Battery Weight: 25G
Measurement（Φ*H）: 14*50.5mm

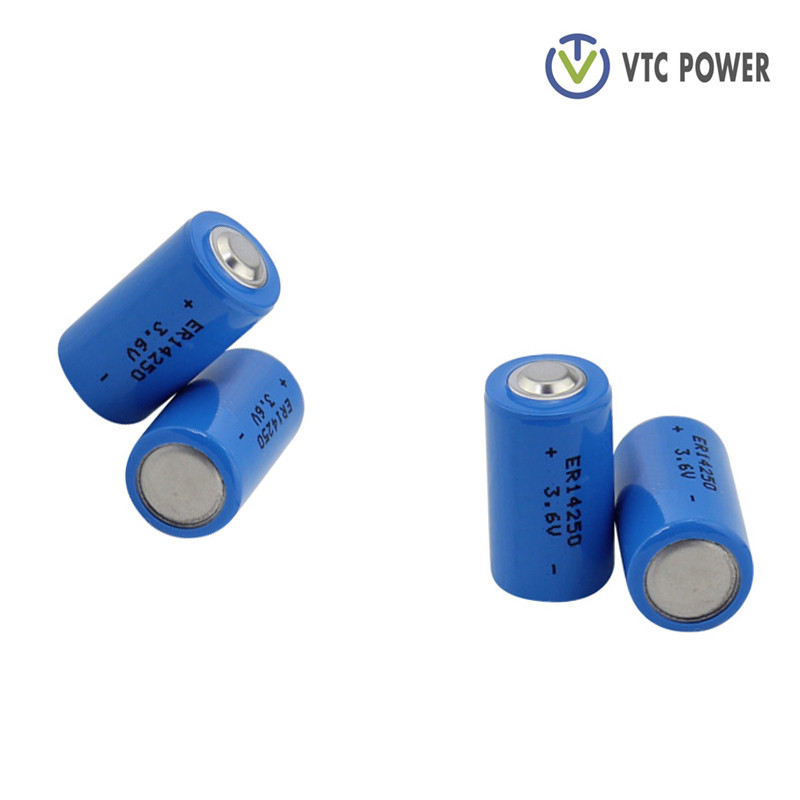

Model: VTC-ER14250
Nominal voltage: 3.6V
Nominal capacity: 1200MAh
Battery Weight: 11G
Measurement（Φ*H）: 14.5*25.2mm

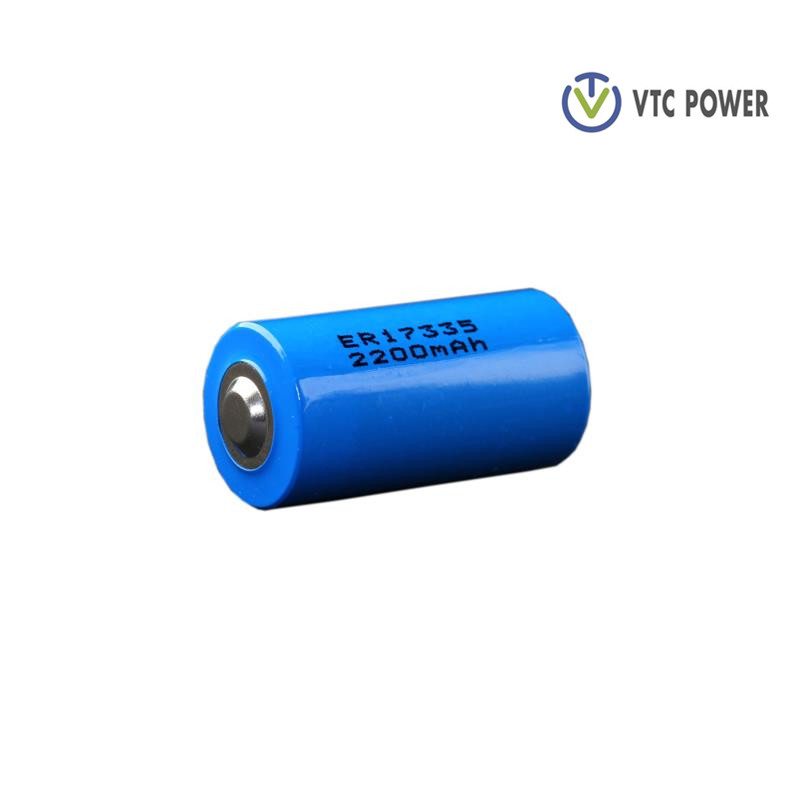

Er17335 Battery Specification:
Model: VTC-ER17335
Nominal voltage: 3.6V
Nominal capacity: 2200MAh
Battery Weight: 19G
Measurement（Φ*H）: 17*35.5mm

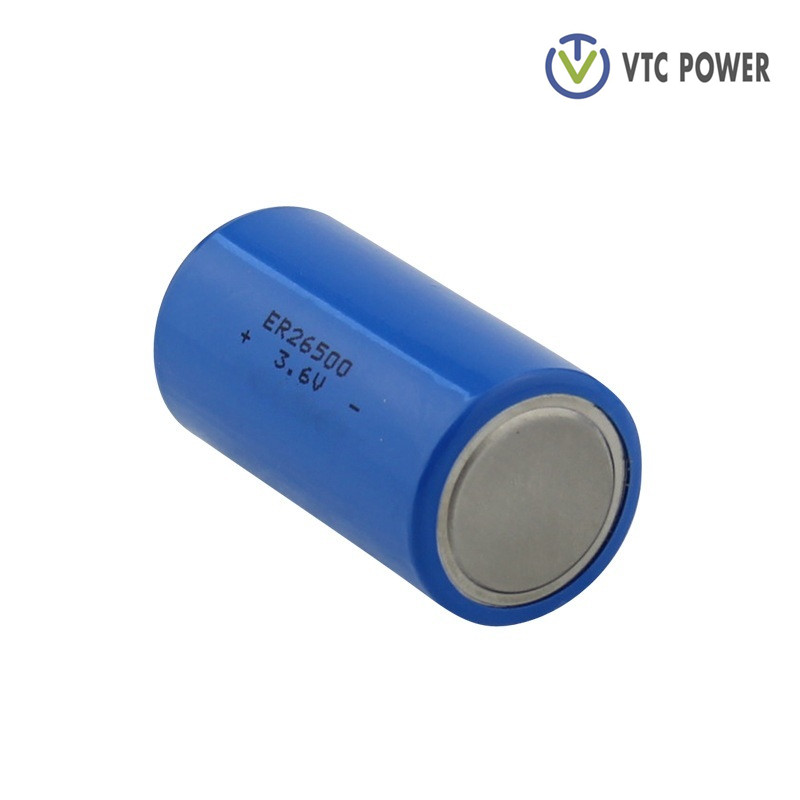

Er26500 Battery Specification:
Model: VTC-ER26500
Nominal voltage: 3.6V
Nominal capacity: 6500MAh
Battery Weight: 53G
Measurement（Φ*H）: 26.2*50mm
