Model: VTC-16LF200
Nominal voltage:48V
Nominal capacity:50Ah
Internal Resistance: ≤100mΩ
Life Cycles:≥2000
Maximum Charge Voltage:58.4V
Cut-off Discharge Voltage: 36.9V
Continuous Discharge Current: 100A
Battery Weight:87.5Kg
Measurement:Customized
Model: VTC-12S15
Nominal capacity: 15Ah
Internal Resistance: ≤200mΩ
Life Cycles: ≥3000
Maximum Charge Voltage:43.8V
Cut-off Discharge Voltage: 24V
Continuous Discharge Current: 50A
Battery Weight: 12Kg
Measurement: 540 x 255 x 140mm(customized)

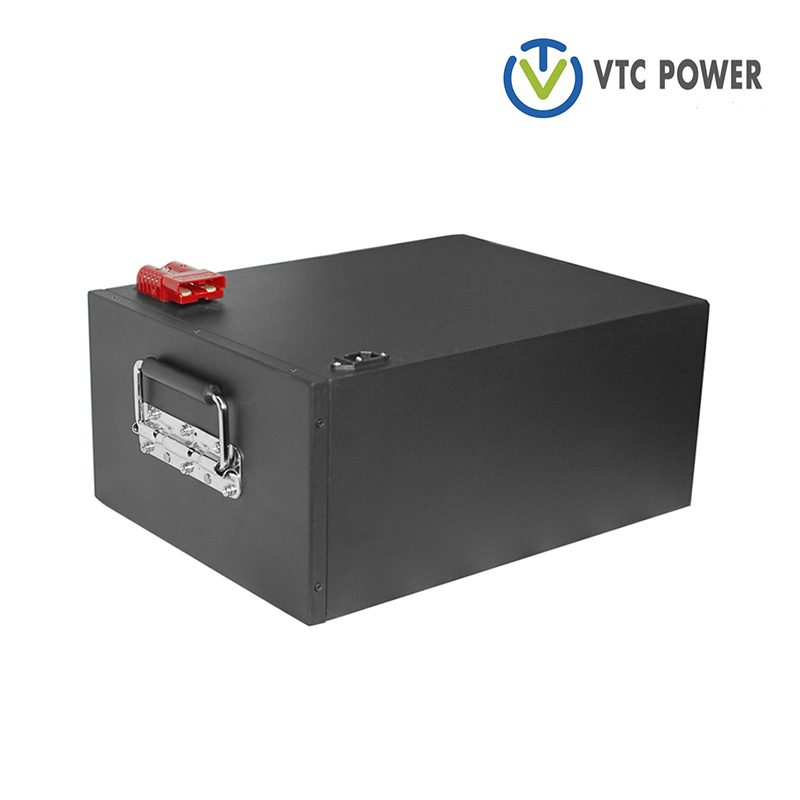

Model: VTC-16LF200
Nominal voltage:48V
Nominal capacity:200Ah
Internal Resistance: ≤100mΩ
Life Cycles:≥2000
Maximum Charge Voltage:58.4V
Cut-off Discharge Voltage: 36.9V
Continuous Discharge Current: 100A
Battery Weight:87.5Kg
Measurement:640*483*222mm
Model: VTC-12S15
Nominal capacity:15Ah
Internal Resistance: ≤200mΩ
Life Cycles: ≥3000
Maximum Charge Voltage:43.8V
Cut-off Discharge Voltage:24V
Continuous Discharge Current: 50A
Battery Weight:12Kg
Measurement:540 x 255 x 140mm(customized)
The lithium iron phosphate battery is a type of rechargeable battery based on the original lithium ion chemistry, created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less but have lower voltage and energy density than normal Li-ion cells.

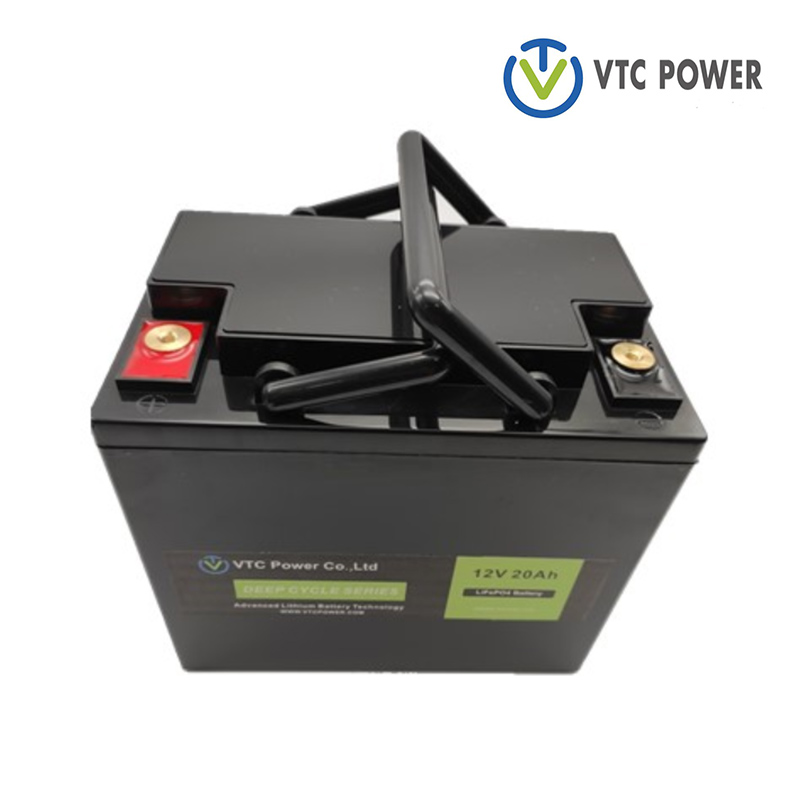

Model: VTC-4LF20
Nominal capacity:20Ah
Internal Resistance: ≤200mΩ
Life Cycles:≥3000
Maximum Charge Voltage:14.6V
Cut-off Discharge Voltage:9.2V
Continuous Discharge Current: 50A
Battery Weight:2.8Kg
Measurement:181 x 77 x 167/167mm
