Lithium thionyl chloride battery (Li-SOCI2 battery) cathode is lithium metal (Li), the internal positive electrode active material and electrolyte are thionyl chloride (SOCl2)。 The rated voltage is 3.6V. 3.6V LiSoci2 battery are cylindrical and button shape, from 1/2AA to D format, with spiral type for high current and bobbin construction for small current. Lithium thiony chloride cells have a high energy density, partly because of their high nominal voltage of 3.6V. Bobbin type can reach 760Wh/kg, for a capacity of 19Ah at 3.6V in D format. Because self-discharge is extremely low, 3.6V LiSoci2 battery cell can support long storage periods and achieve a service life of 10 to 20 years.

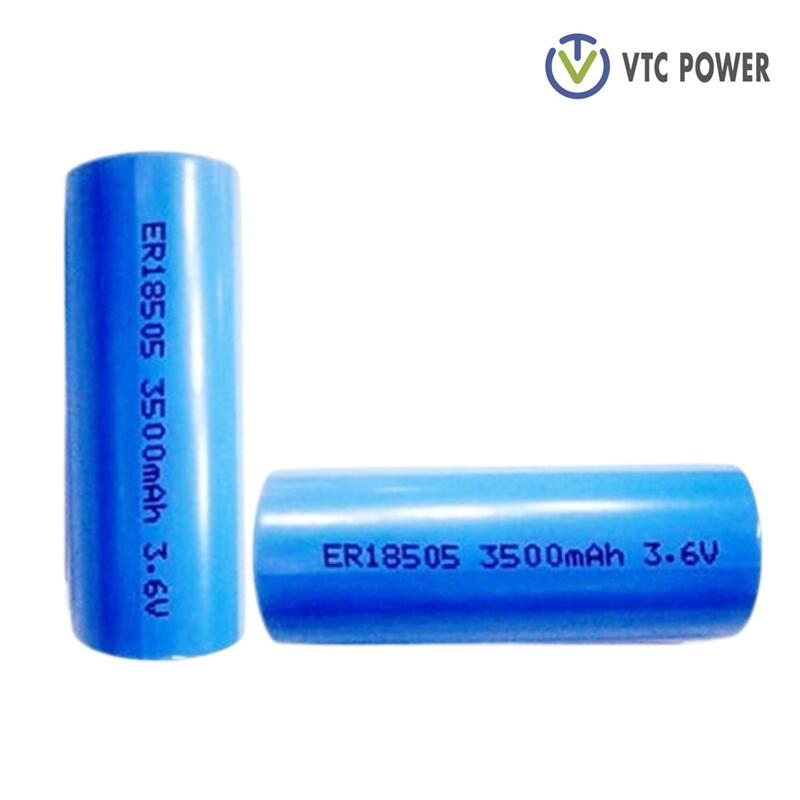

Er18505 Battery Specification:
Model: VTC-ER18505
Nominal voltage: 3.6V
Nominal capacity: 4000MAh
Battery Weight: 30G
Measurement（Φ*H）: 18.8*50.5mm

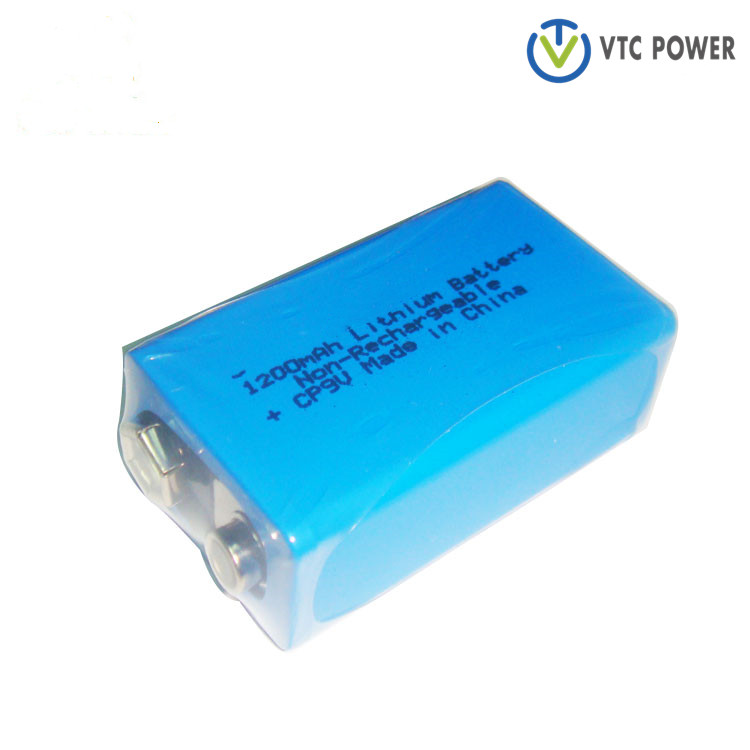

Model No: CP9V
IEC Size: 9V
Voltage(V): 9.0V
Weight(g): 29g
Current(mAh\mA): 1200mAh
Max constant current(mA): 300mA
Operate Temp.(℃): -40-60℃
End voltage(V): 5.4V
Model No: CP9V
IEC Size: 9V
Voltage(V): 9.0V
Weight(g): 29g
Current(mAh\mA): 1200mAh
Max constant current(mA): 300mA
Operate Temp.(℃): -40-60℃
End voltage(V): 5.4V

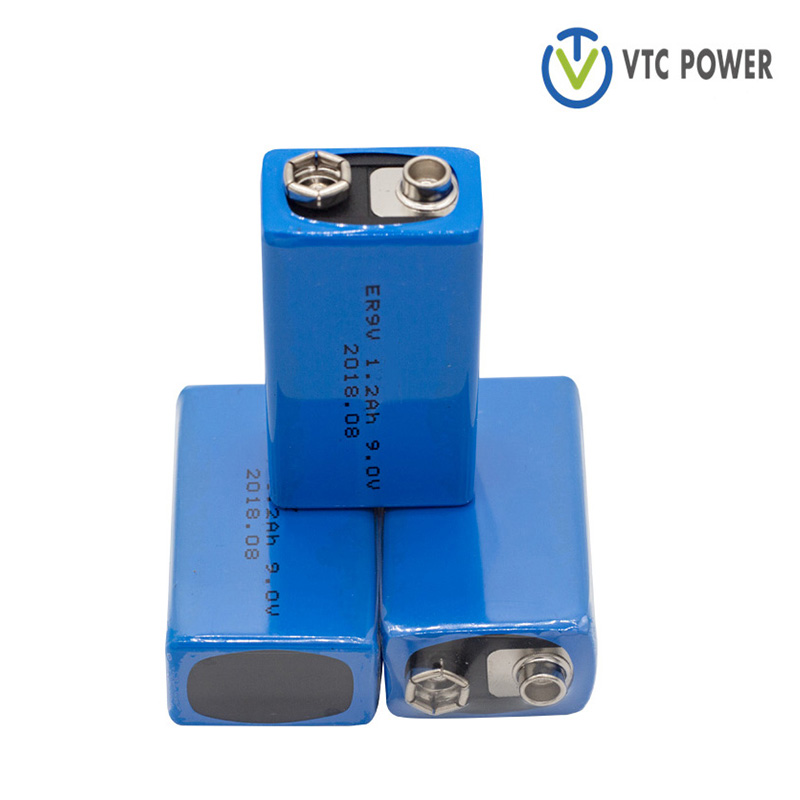

Model No：ER9V
IEC Size： 9V
Voltage(V)：9.0V
Weight(g)：31g
Current(mAh\mA)： 1200mAh
Max constant current(mA)：25mA
Operate Temp.(℃)：-55
End voltage(V)：6.0V
9V Rechargeable Battery 1200mAh USB Portable battery is very hot and popular in the market now for backup energy for mobile,RC helicopter,toy,electronics.It has the indication of the energy and power.

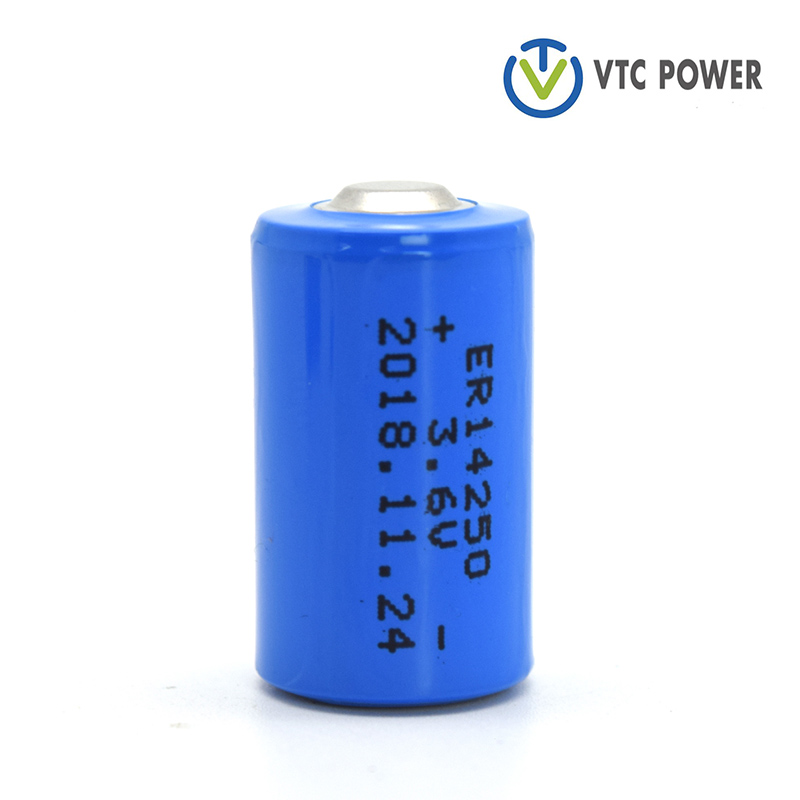

Model: VTC-ER14250
Nominal voltage: 3.6V
Nominal capacity:1200MAh
Battery Weight:14g
Measurement（Φ*H）:14*25mm
